TXWIN, windowing UI library

This is the complete multi-platform windowing library developed for the DFSee program, offered in a ZIP-file distribution that contains all sources, makefiles and several sample programs with source, to demonstrate some of the library features.

Licensing

As of version 7, TxWin is covered by the fairly liberal MIT open source license .

Library Download

TxWin multiplatform text mode windowing library (11 Mb)

Multiplatform availability

The library download includes support for the following five target platforms:

OS/2 including ArcaOS and eComstation, running in a VIO window or full-screen
Win32 from XP to Windows-10, running in the Console (cmd.exe or PowerShell)
Dos32 a 32-bit DOS-extended version running on most DOS versions, like FreeDOS
Linux 32-bit, running in X-terminal (with mouse) as well as the full-screen Console (no mouse)
macOS a 64-bit version running in the standard 'Terminal', iTerm and others

The macOS version can be compiled with either GCC 4.2 (32-bit) or the later LLVM/Clang compilers (64-bit target) that come with the standard Apple Xcode development environment (needs commandline tools). Corresponding makefiles are included with the library and sample program sources.

It consists of a single statically linked library file (libtx*.a) either as a 'release' or a 'debug' version and supports full source-level debugging using the Xcode environment

All others are compiled with the OpenWatcom compiler (stable 1.9 version, or newer 2.0 one) and the compiler configuration scripts as well as some build scripts are included. Building the library has been tested on OS/2 and Windows only, but may work with some build-modifications on other platforms supporting OpenWatcom, like FreeDOS and Linux.

On these platforms the library consists of a single statically linked library file (tx*.lib) either as a 'release' or a 'debug' version for source-level debugging with the OpenWatcom debugger.

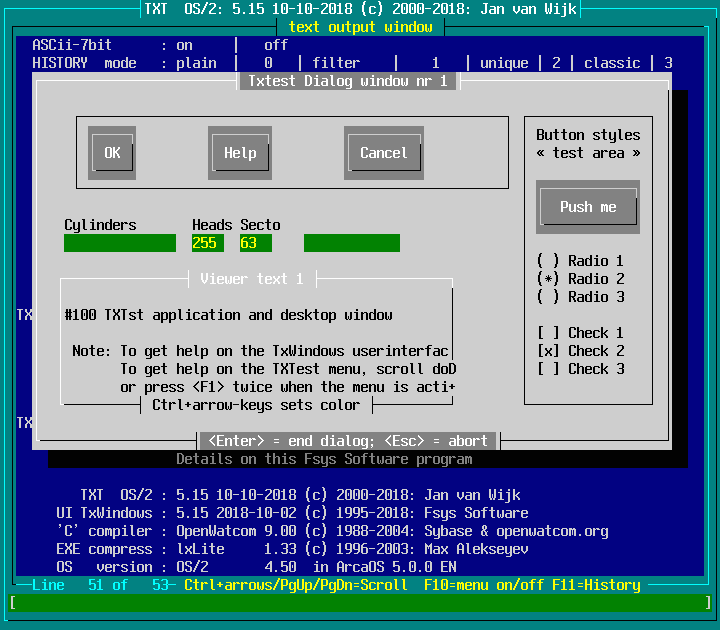

The included 'TXT' sample program is a test program that shows a lot of what the library can do, see the first screenshot. Pre-compiled binaries for each platform are included in the distribution ZIP, so you can see how it behaves without needing to have the build environment working.

Library windowing features

The library supports a windowing environment modelled after the familiar OS/2 PM and Windows message based window-systems, including a single message-queue and familiar messages like WM_CREATE, WM_PAINT, WM_COMMAND, WM_CHAR and many more. Created windows/dialogs can have their own message-handling-procedures (WinProc) to implement specific behaviour on top of the existing library functionality. In contrast to those GUI environments, the display output is text-based, using plain ASCII characters, it is not a graphical interface (GUI)

The interface is operated by both keyboard and mouse on all platforms, and also integrates with the OS clipboard

The most important user interface elements supported are:

Desktop and frame/canvas windows, to hold other interface elements
Text view windows, for help information or other application specific contents
Entryfields, for single line text input
Text fields, for single line text output
A scrollable multi-line text-output window will (ANSI) color support
Buttons, in various styles like Push-Button, CheckBox and Radio-Button
Listboxes, implementing selection from a series of text items, for menus and more
Menus, in the form of a menu-bar and pull-downs as well as seperate pop-up menus
Standard dialogs, like File-Open/Save, MessageBox, Confirmation and Value-entry

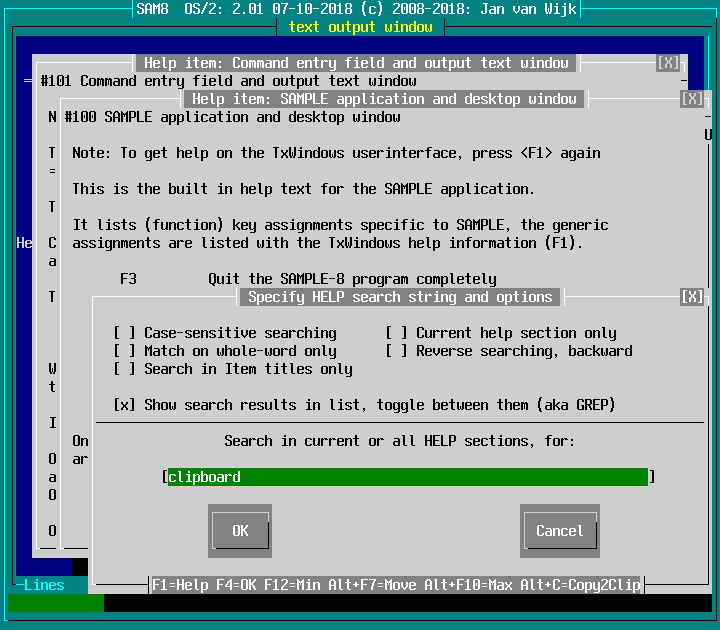

Context sensitive help, with search capability, see screenshot on the right
A HEX-edit popup Dialog, to view/edit memory buffers (binary-file/sector editor)

The 'TXT' sample program is a test program that shows a lot of what the library can do, see screenshot

Library generic features

Apart from the windowing specific features, the library also has a lot generic features:

string handling
file handling
directory traversal
block-structured scripting language
builtin generic commands
execution of external (OS) command with output redirection into a window
automatic logging of all output (to the scrollable window) to a file
functional tracing of executed code for fast and convenient bug-hunting without the need for a debugger
and more ...

The library includes several sample programs to demonstrate the features, but probably the best way of seeing what the library can do is evaluate the full DFSee program ...

User feedback and support

Feedback on the library is much appreciated, and you can get some help in using it (on a best effort basis) by contacting me at: jvw@dfsee.com

Of course contributions in the form of bug fixes or new functionality are welcome as well.

Presentations on TxWin, including PDF downloads

	Textmode windowing using the TxWin library View/download as PDF
	TxWin library, programming and user guide View/download as PDF
	TXscript, native scripting A block-structured scripting language aimed at executing commands to automate program operations View/download as PDF
	TxWin library, distribution and sample programs View/download as PDF
	Cross-platform text-mode programming using OpenWatcom View/download as PDF
